Behringer GRIND semi-modular synth announced

by |Published -Updated

Behringer has announced its GRIND semi-modular synthesiser with 24 digital sound engines, analog ladder filter, 32-step sequencer and 16-voice poly chain.

Features

  • Hybrid synthesizer with multi-engine digital oscillator and classic analog filter allows for unheard-of sound creation
  • Amazing sound powerhouse for anything from percussion, leads and basses to drums, drones and soundscapes
  • 24 digital oscillators including 15 Mutable Instruments Plaits engines for infinite sound creation
  • Synthesis models designed for pitched sounds like ripping leads, lush chords and ethereal pads
  • 10 synth engines: Virtual Analog, Waveshaper, FM, Grains, Additive, Chords, Speech, Karplus, Hypersaw and Wavetable
  • 10 percussion and noise engines: Rain, Noise, Dust, Modal Strings, FM Drum, Bass, Snare, Hi Hat, Cowbell and Tom
  • 4 extended engines: DX7, TD-3 Bassline, Wave Generator and Vox
  • Oscilloscope mode to monitor any input signal
  • Multi-functional Timbre and Harmonics controls for complex synthesis
  • Morph control to seamlessly change the character of the selected sound sources
  • Classic 24 dB ladder filter with resonance for legendary sound performance
  • Switchable low/high pass filter mode for enhanced sound creation
  • Modern and easy-to-use 32-step sequencer with 64 onboard storage slots
  • Advanced Arpeggiator with wide patterns for great sound effects
  • Dedicated and fully analog triangle/square wave LFO
  • 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
  • Semi-modular design with default routings requires no patching for immediate performance
  • 22 x 12 I/O matrix for incredibly vast and flexible patching options
  • 50 controls give you direct and real-time access to all important parameters
  • Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

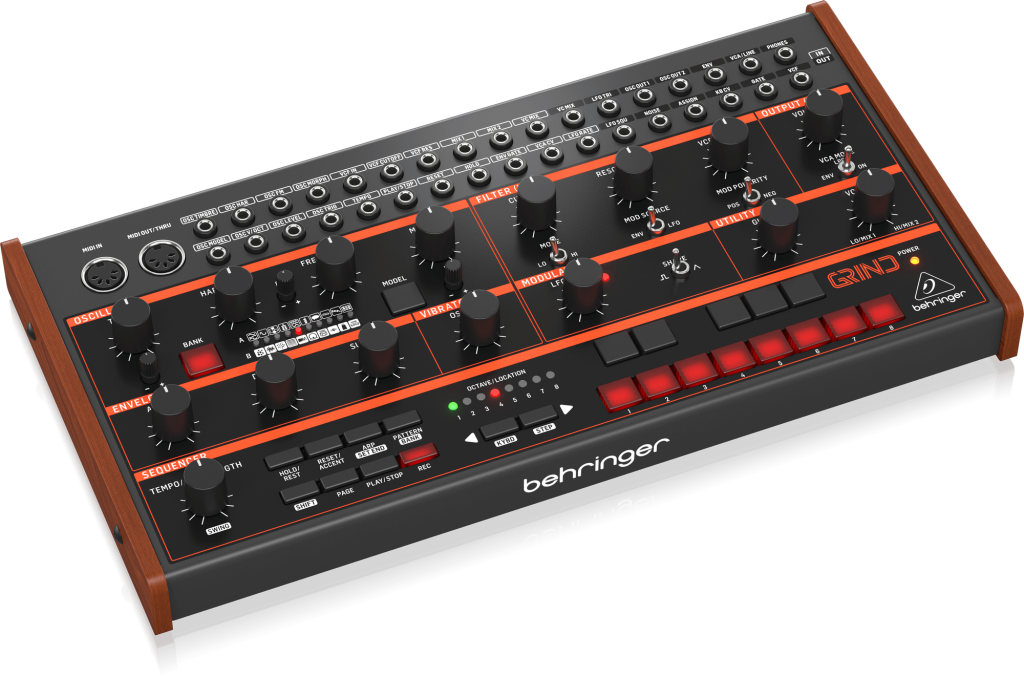

Image BE 0718 ACI GRIND Left XL 1024x677

Specifications

Synthesiser Architecture

Number of voicesMonophonic
TypeHybrid Analog / Digital
Oscillators1 Digital Modelling
LFO1 (0.01 Hz to 350 Hz)
VCF1 low pass 24 dB/octave slope
Envelope1 ADS

Connectivity

Power InputDC 12 V 1000 mA
Power SwitchPush button on/off
MIDI5 pin DIN In Out/Thru
USBClass compliant 2.0 Type B
Outputs3.5 mm TS jack socket, unbalanced, Max +8 dBu
1 k? impedance
Headphones3.5 mm TRS, max 10 mW @ 32 ?

Modelling Oscillator

ButtonsBank select, Model Select
ControlsTimbre, Timbre CV attenuator, Harmonics, FM, Frequency, Morph, Morph CV attenuator

VCF

ControlsCutoff Frequency (20 Hz to 20 kHz), Resonance, Modulation Depth
SwitchesLo pass/Hi pass, Modulation source (env/LFO), Modulation polarity (positive/negative)

VCA

ControlVolume
SwitchMode (envelope, LPG, on)

Envelope

ControlsAttack (2 ms to 3 s), Decay (2 ms to 5 s), Sustain

Vibrato

ControlOsc Modulation

Modulation

ControlLFO Rate
SwitchLFO shape (square, triangle)
LEDLFO Rate

Utility

ControlsGlide, VC mix
