1. Introduction

Before Yamaha became synonymous with FM synthesis and the DX7, the company spent a decade refining a family of analog synthesizers that are still revered today: the CS series. Spanning huge polyphonic flagships, punchy monosynths, and even quirky consumer models, the CS line shows Yamaha at its most experimental and expressive.

This guide walks through the full history of the Yamaha CS series — how it began, how it evolved, and why so many musicians still reach for these instruments decades later. You’ll also find model overviews, buying advice, maintenance notes, and comparisons to modern alternatives.

2. Background — Yamaha Before the CS Era

Before Yamaha built synthesizers, they built everything else: pianos, electric organs, hi-fi equipment, and a growing range of electronic components. Through the late 1960s and early ’70s, Yamaha experimented heavily with Electone organs and early analog circuitry, which laid the groundwork for their first synth designs.

At the time, Moog and ARP dominated the American market, while Roland and Korg were just beginning to establish themselves in Japan. Yamaha’s goal wasn’t simply to build another monosynth. They wanted to create expressive performance instruments, combining the stability of their engineering with features that would let players truly shape the sound in real time.

This philosophy becomes obvious as soon as you look at the flagship CS models — polyphonic aftertouch, ribbon controllers, layered voices — all unusually ambitious for the 1970s.

3. CS Series Timeline (By Generation)

3.1 Generation 1 (1974–1977): The Expressive Polyphonic Era

This period marks Yamaha’s bold entry into synthesizers, culminating in one of the most famous analog synths of all time.

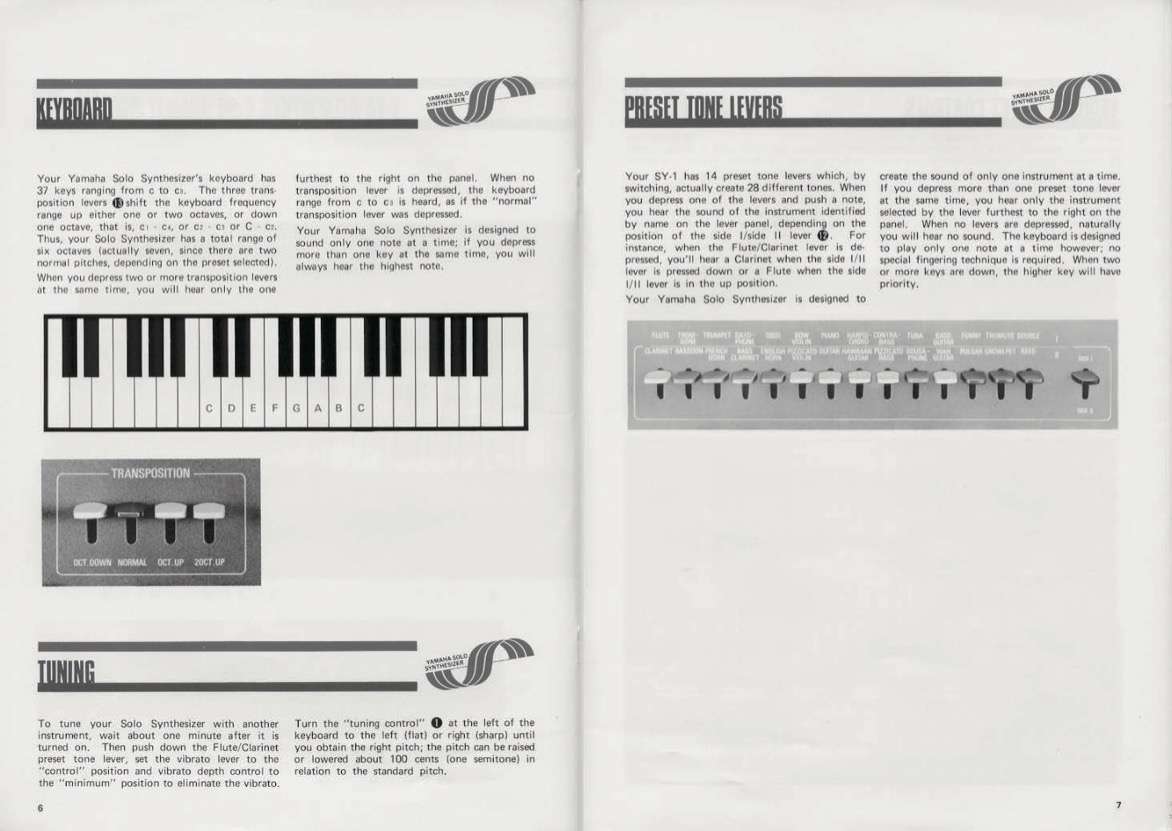

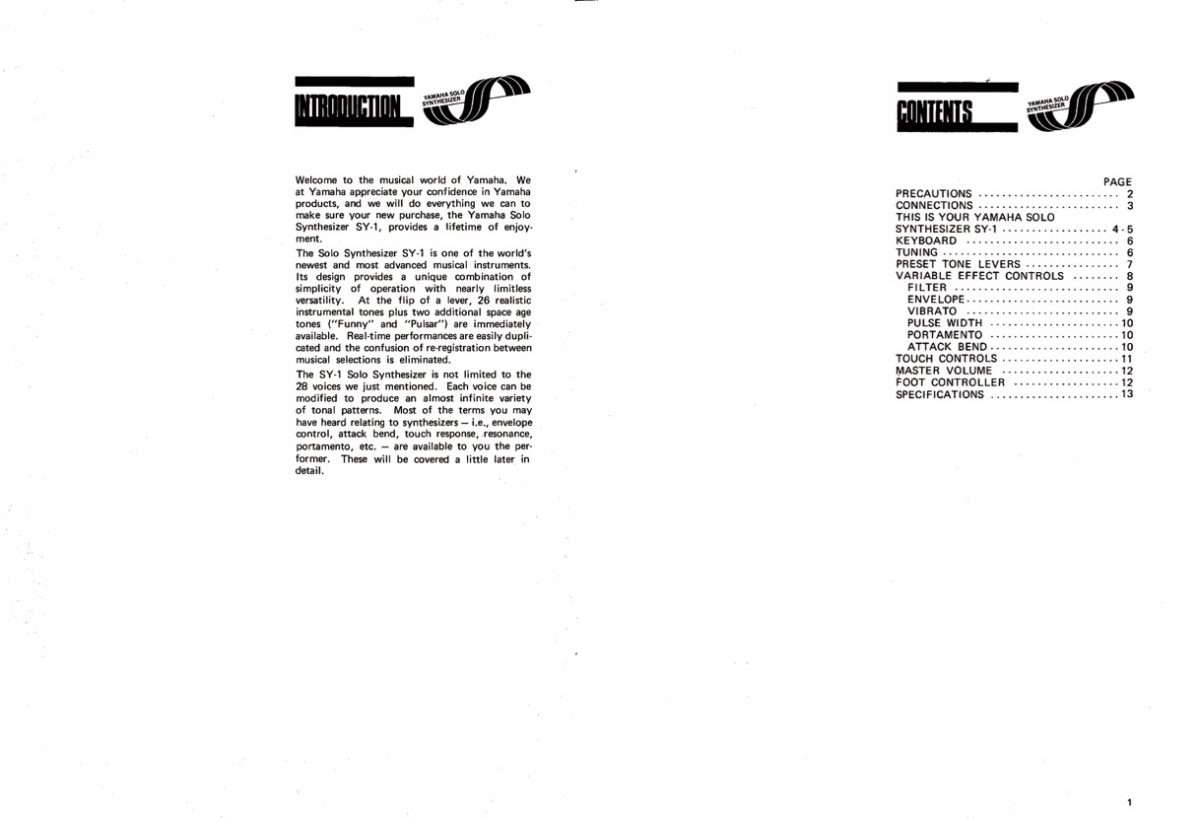

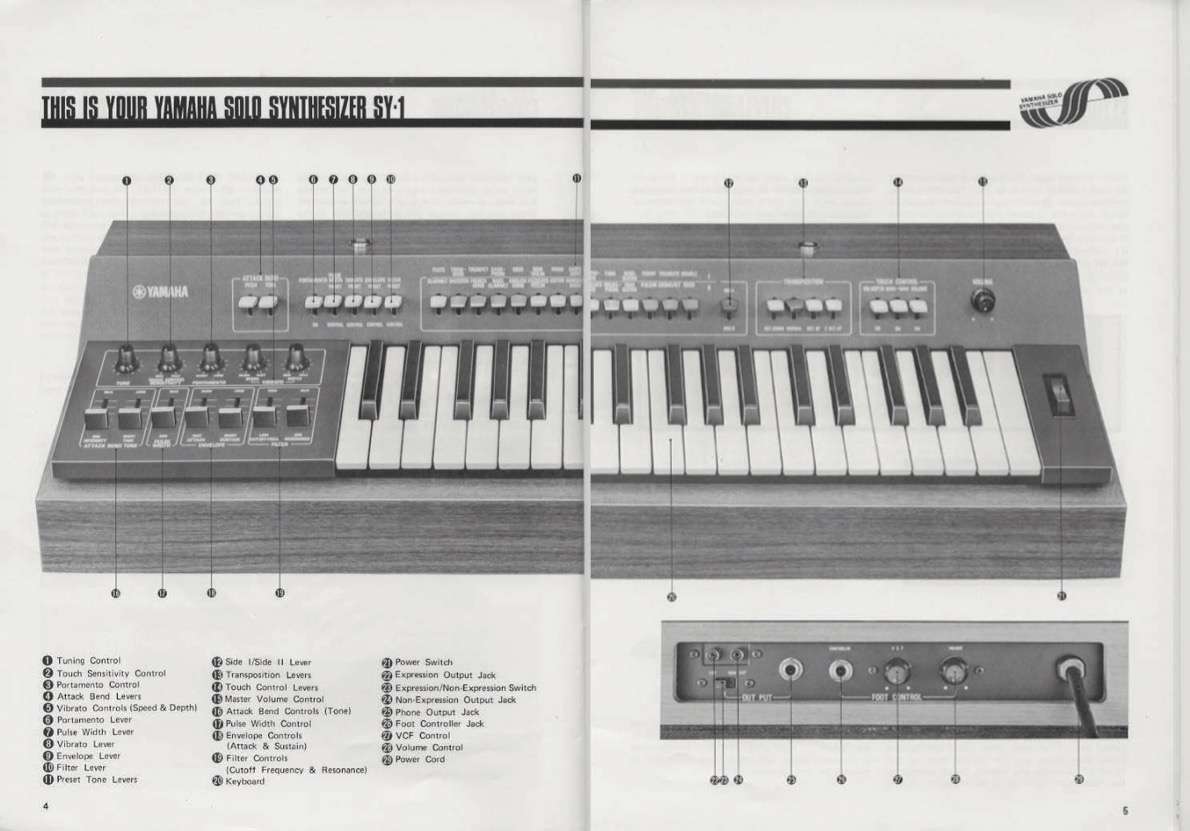

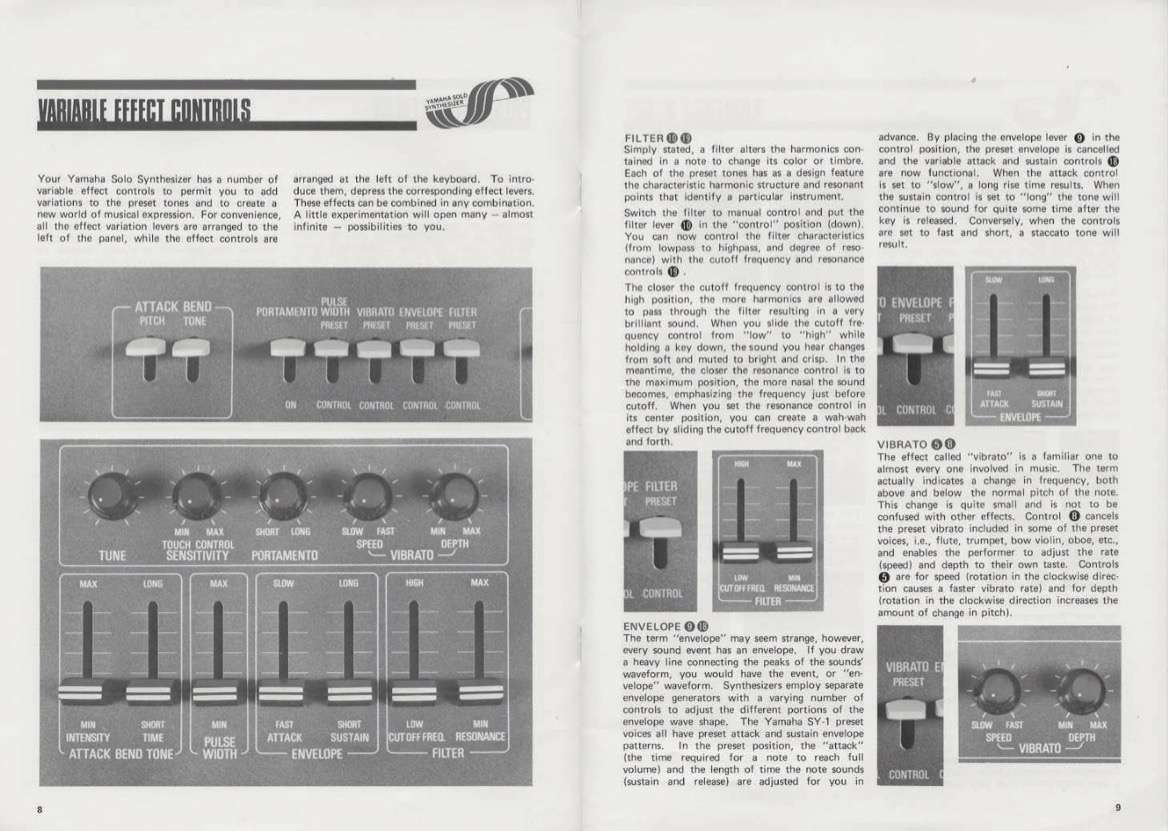

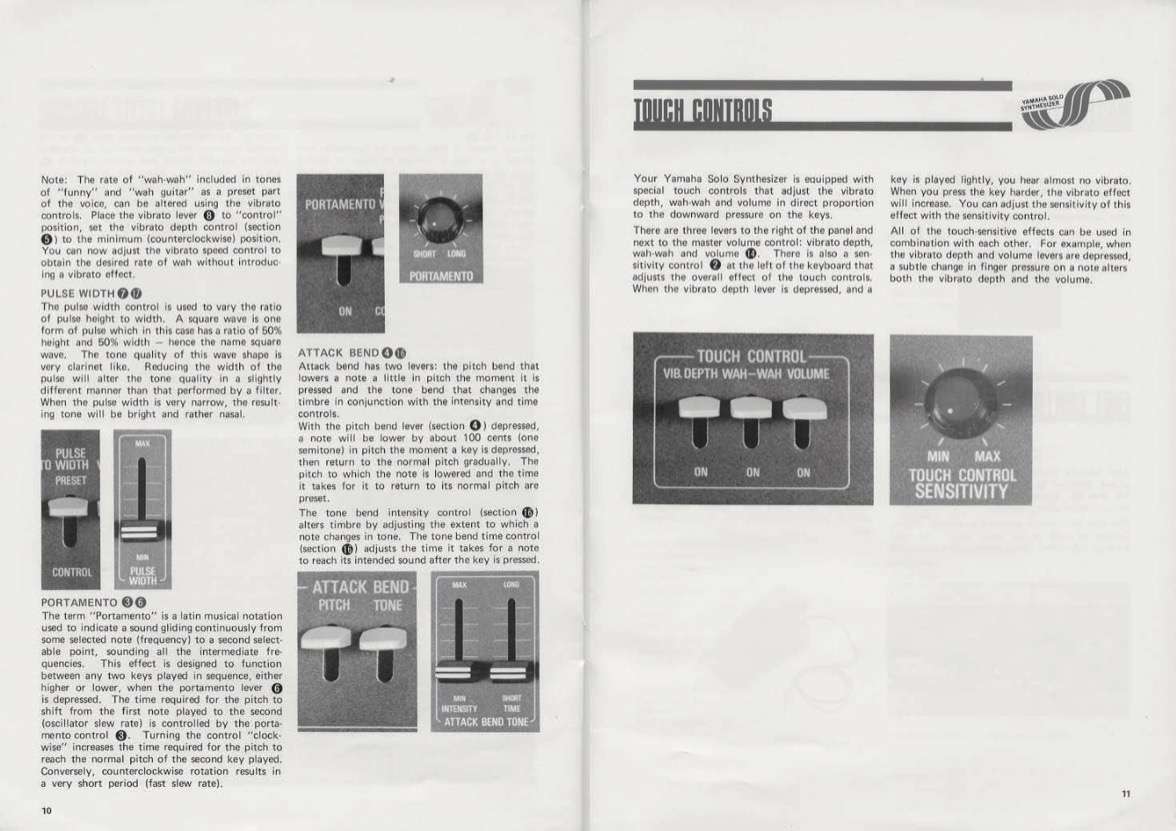

SY-1 / SY-2 (1974–1975)

Technically pre-CS, but crucial. These preset-based monosynths were Yamaha’s testbed for the filter and envelope architecture that would lead into the CS polyphonic instruments.

They were initially developed as accessories to be used with larger organs and pianos, sitting on top of those instruments much as modules and portable keyboards are today. It’s one reason some of the coloured switches and other controls look so familiar and iconic to anyone who has played the earlier single and double keyboard organs of the time.

A wide range of synthesised sounds could be selected and modified using the switches, sliders and knobs. Effects included an analog low pass resonant filter, analog VCA envelope and attack/pitch-bend. A foot pedal allows for volume control.

Similar in nature, the SY-2 had a few additional synthesis controls including resonant high pass filter, and full ADSR control with the additional sliders. A foot pedal can be connected to facilitate wah-wah as well as volume.

The SY-1 was used by electronic music duo Röyksopp, while the SY-2 was in use by English electronic music band Add N to (X), and Kerry Minnear from Gentle Giant. The BBC Radiophonic Workshop also made use of the SY-2.

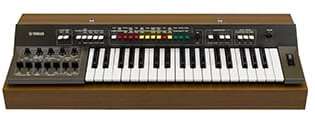

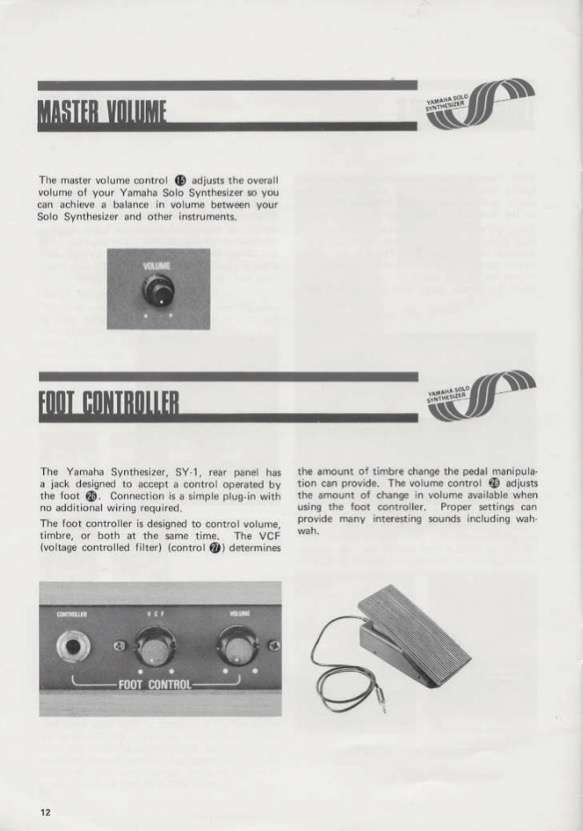

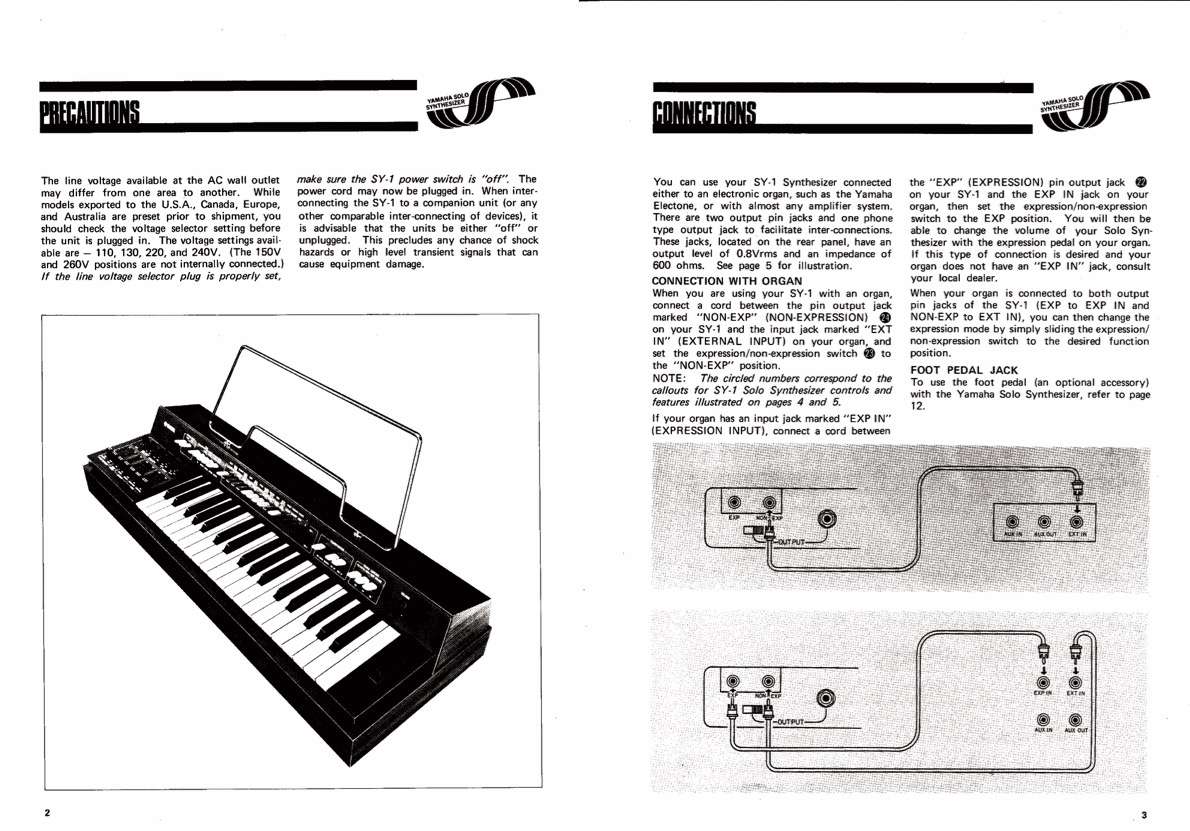

SY-1

Model: SY-1
Year: 1974
Price: ¥200,000 / $660
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Sounds: 28 default
Dimensions: 780 (W) x 280 (D) x 165 (H) mm
Weight: 12kg

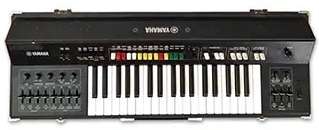

SY-2

Model: SY-2
Year: 1975
Price: ¥303,000 / $995.00
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Dimensions: 900 (W) x 320 (D) x 200 (H) mm
Weight: 21kg

CS-50, CS-60, CS-80 (1977)

The “big three” of the early CS era. Each one was a variation on the same concept:

• Polyphony
• Real-time performance control
• A rich, stable, unmistakably Yamaha filter
• The now-legendary polyphonic aftertouch keyboard
• A long ribbon controller for expressive pitch sweeps

The CS-80 is the best known, of course — thanks largely to Vangelis and Blade Runner. But the CS-50 and CS-60 remain excellent instruments in their own right, offering the same design philosophy in lighter, more accessible packages.

These synthesizers were not modular or particularly wild compared to some American analogs, but what they were was expressive. Yamaha treated them more like instruments than machines, and players noticed.

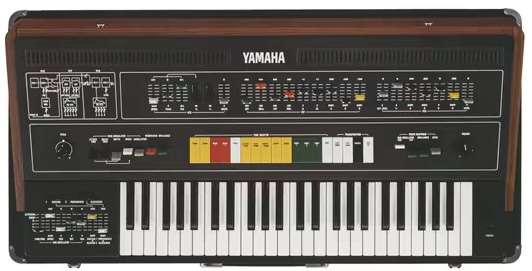

CS-50

Model: CS-50
Year: 1977
Price: ¥385,000 / $1,600
Tone Generator: Analog Synthesizer Type
Keyboards: 49 keys
Polyphony: 4
Dimensions: 980 (W) x 488 (D) x 1,056 (H) mm
Weight: 35kg

The CS-50’s sound may be considered rather thin compared to subsequent models, owing in part to having just four voices and one OSC per voice, and lacking warm filters. It has 13 preset sounds, and while editing is possible, there’s no way of storing those presets for future use.

Famous musician users include Men Without Hats and Herbie Hancock.

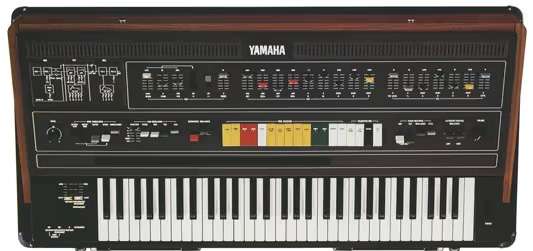

CS-60

Model: CS-60
Year: 1977
Price: ¥585,000 / $2,440
Tone Generator: Analog Synthesizer Type
Keyboards: 61 keys
Polyphony: 8
Dimensions: 1,108 (W) x 527.5 (D) x 255 (H) mm
Weight: 46kg

The CS-60 is a much humbler version of the CS-80, with a few sounds which can be edited. There’s a ribbon controller offering some interesting possibilities, ring modulation, but no programmability.

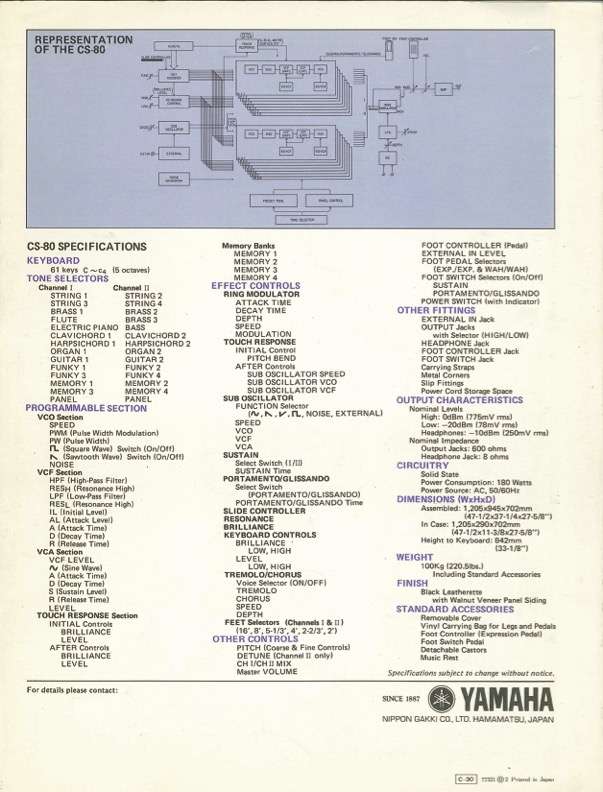

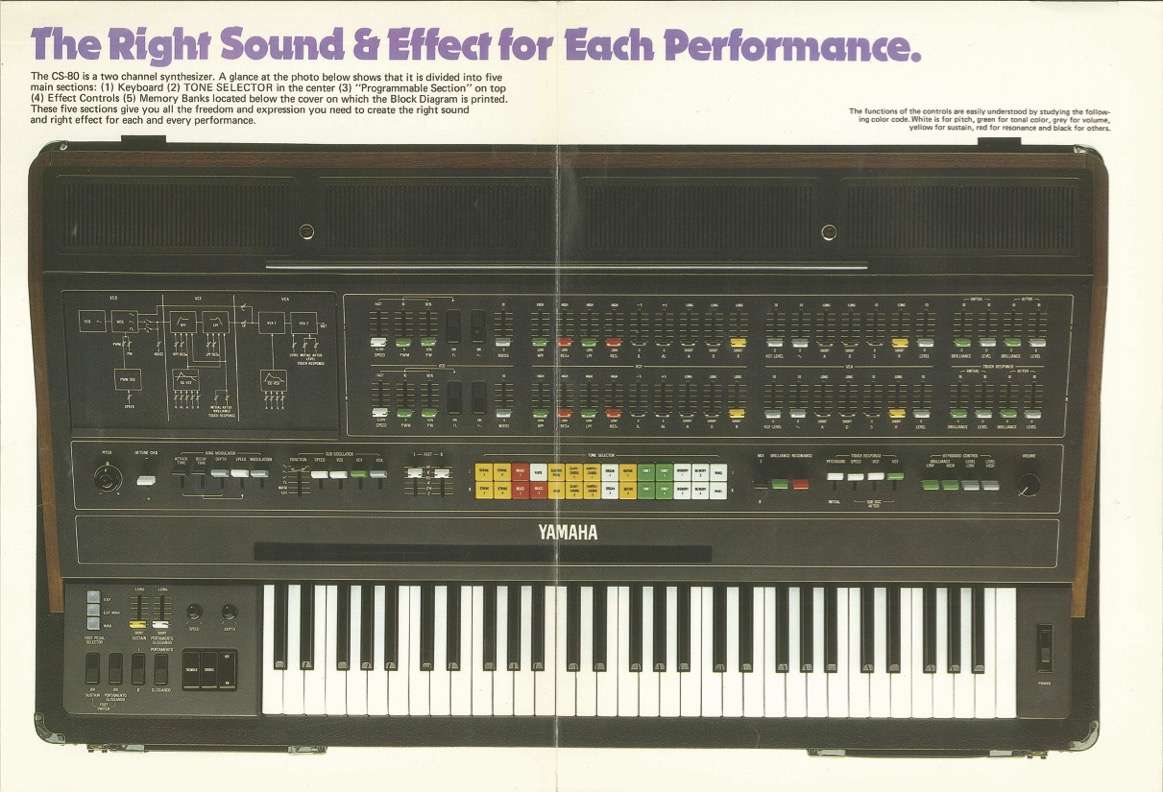

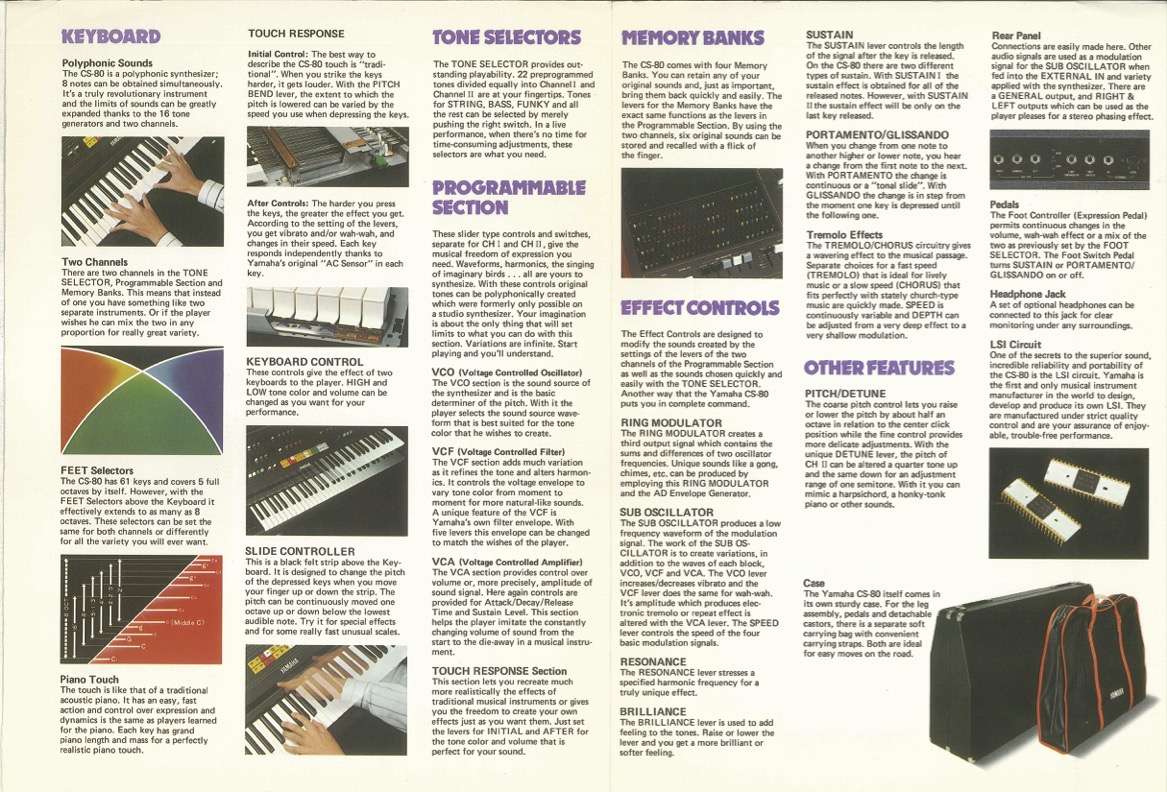

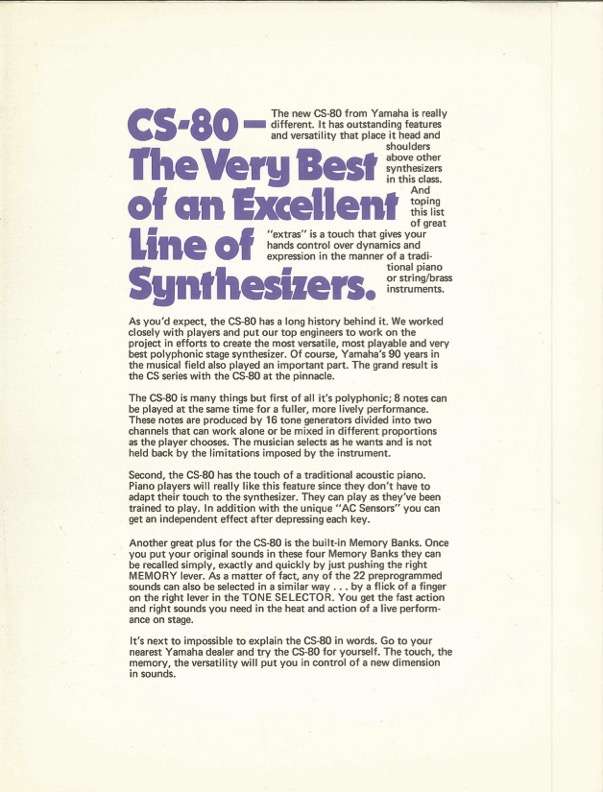

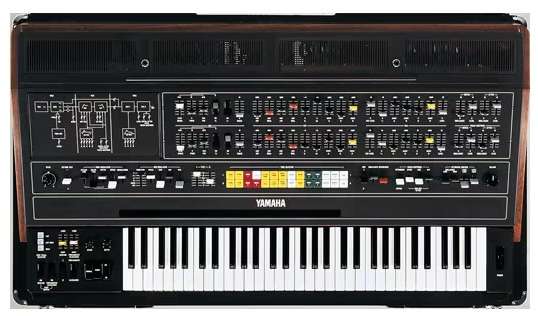

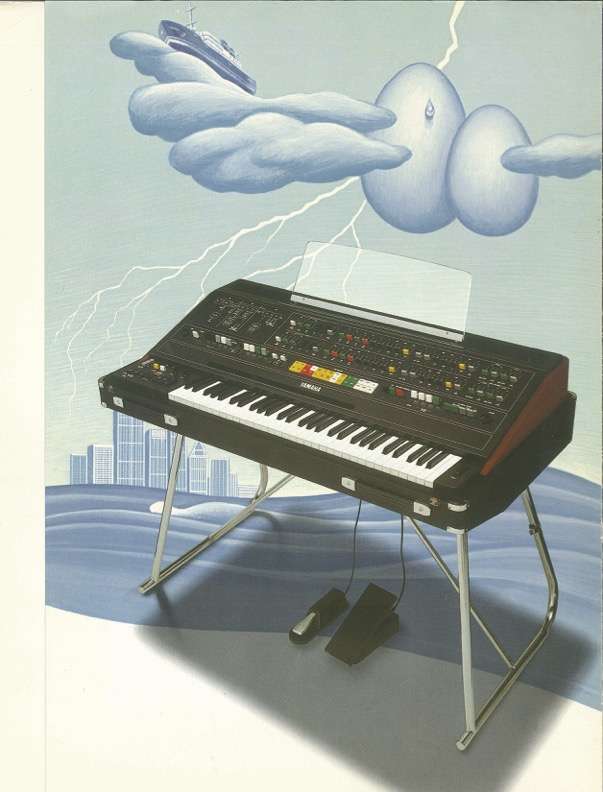

CS-80

Model: CS-80
Year: 1977
Price: ¥1,280,000 / $5,330
Tone Generator: Analog Synthesizer Type
Keyboards: 61 keys
Polyphony: 8
Dimensions: 1,206 (W) x 681 (D) x 295 (H) mm
Weight: 82kg

The CS-80 is a beast of a synth with a host of features uncommon at the time of its launch, including patch memory storage and polyphonic aftertouch.

Famous musicians who have used the CS-80 include Vangelis, Toto, 10CC, The Stranglers, Sparks, Keith Emerson, Giorgio Moroder, Kraftwerk and Arcade Fire.

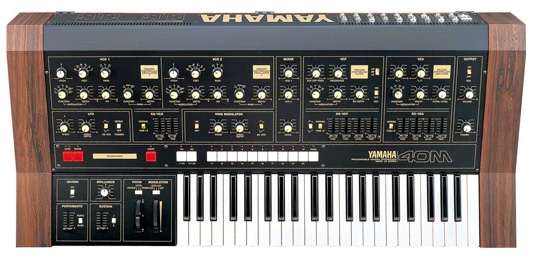

CS-40M (1979)

Related to the CS-50 and CS-60 architecture, it featured a patch memory system.

The CS-40M sat alongside the larger CS-50 and CS-60, sharing much of their design philosophy while incorporating a memory system for sound recall. Though less famous than its larger siblings, the CS-40M reflects Yamaha’s early attempts to balance expressive performance with practical live usability.

Model: CS-40M
Year: 1979
Price: ¥320,000 / $1,330
Tone Generator: Analog Synthesizer Type
Keyboards: 44 keys
Polyphony: 2
Effects: Unison, portamento/glissando, brilliance, sustain, pitch bend, modulation
Dimensions: 988 (W) x 470.5 (D) x 177 (H) mm
Weight: 21kg
Other: 4 VCO, 2 VCF, 2 VCA, 4 EG, 1 LFO, optional foot controller, foot switch

Musicians who have used this include Ultravox, Duran Duran, Vangelis, Electronic Dream Plant, Sneaker Pimps, Front 242, The Residents, Images in Vogue and Cosmic Overdose.

3.2 Generation 2 (1977–1981): Affordable Analog and Semi-Modular Creativity

After establishing the flagship line, Yamaha expanded into more compact and flexible monosynths.

CS-5, CS-10, CS-15, CS-30, CS-30L, CS-15D, CS-20M (1977-1979)

This range was aimed at working musicians, home studios, and experimenters.

Key traits:

• CS-5 and CS-10: simple, straightforward, great bass and leads
• CS-15: dual-oscillator, dual-filter architecture that allowed some unique cross-modulations
• CS-15D: combined the dual-oscillator analog architecture of the CS-15 with early digital control elements. While the sound generation remained fully analog, the addition of digital control marked Yamaha’s growing interest in hybrid designs.
• CS-30: the most complex of the bunch — semi-modular patching, built-in sequencer, and a massive panel of routing possibilities
• CS-30L: a rarer and more complex variant of the CS-30, featuring dual independent synthesizer channels. Unlike the standard model, the CS-30L allowed layered or split operation, effectively functioning as two monophonic synths in a single chassis.
• CS-20M: A model somewhere between the CS-10 and CS-30, the CS-20M introduced patch memory to Yamaha’s monophonic lineup. This allowed players to store and recall sounds — a significant usability improvement at a time when most analog synthesizers required manual reprogramming.

These synths have far more “personality” than the early polys. They’re punchy, snappy, and capable of quite aggressive tones. The CS-30 in particular is a cult favourite for experimental music and sound design.

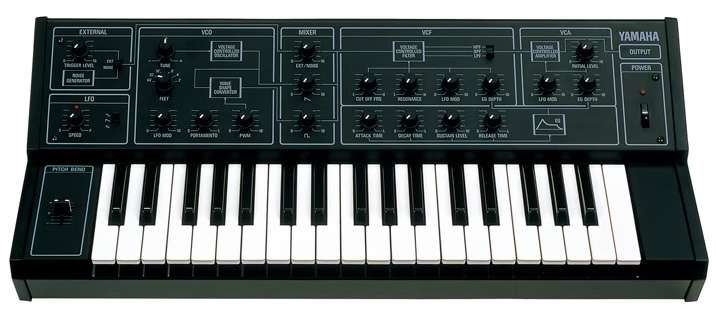

CS-5

Model: CS-5
Year: 1978
Price: ¥62,000 / $320
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Effects: Portamento, pitch bend
Dimensions: 641 (W) x 290 (D) x 157 (H) mm
Weight: 7kg
Other: 1 VCO, 1 VCF, 1 VCA, 1 EG, 1 LFO

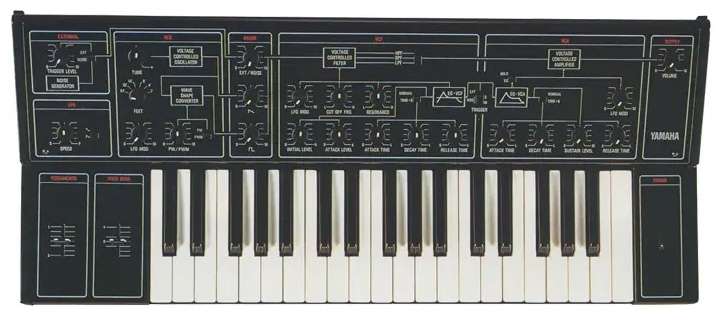

CS-10

Model: CS-10
Year: 1977
Price: ¥82,000 / $340
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Dimensions: 710 (W) x 290 (D) x 155 (H) mm
Weight: 8kg

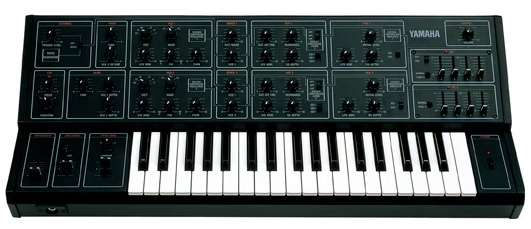

CS-15

Model: CS-15
Year: 1978
Price: ¥105,000 / $540
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Effects: Portamento, pitch bend, brilliance
Dimensions: 754 (W) x 332.5 (D) x 174 (H) mm
Weight: 8.9kg
Other: 2 VCO, 2 VCF, 2 VCA, 2 EG, 1 LFO

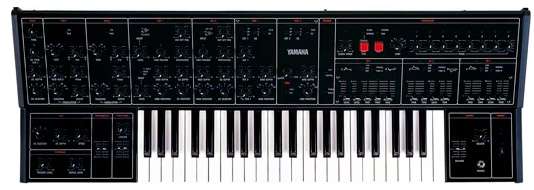

CS-30

Model: CS-30
Year: 1977
Price: ¥185,000 / $770
Tone Generator: Analog Synthesizer Type
Keyboards: 44 keys
Polyphony: mono
Dimensions: 978 (W) x 330 (D) x 173 (H) mm
Weight: 15kg

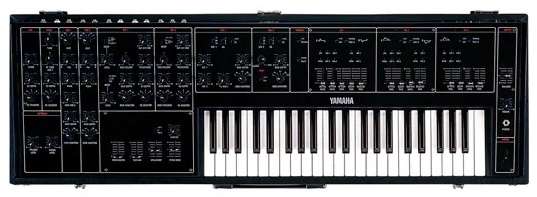

CS-30L

Model: CS-30L
Year: 1977
Price: ¥215,000 / $900
Tone Generator: Analog Synthesizer Type
Keyboards: 44 keys
Polyphony: mono
Dimensions: 1,117 (W) x 368 (D) x 185 (H) mm
Weight: 16kg

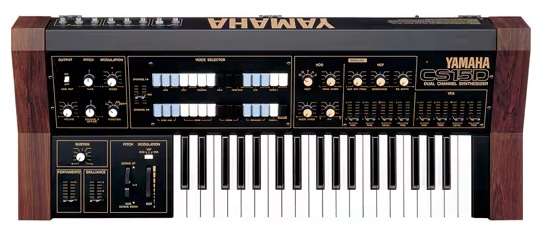

CS-15D

Model: CS-15D
Year: 1979
Price: ¥148,000 / $620
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Sounds: 29 preset, 1 programmable [channel 1: clarinet, oboe, flute, tuba, trombone, horn, trumpet, wood bass, cello, violin, clav, harpsichord, xylophone, cosmic 1 / 2 — channel 2: wood wind 1/2/3, brass 1/2/3/4, string 1/2/3, percussive 1/2/3, cosmic 3, manual]
Effects: Portamento, brilliance, sustain, pitch bend, modulation
Dimensions: 854 (W) x 346 (D) x 134.3 (H) mm
Weight: 12kg
Other: 2 VCO, 2 VCF, 2 VCA, 4 EG, 1 LFO

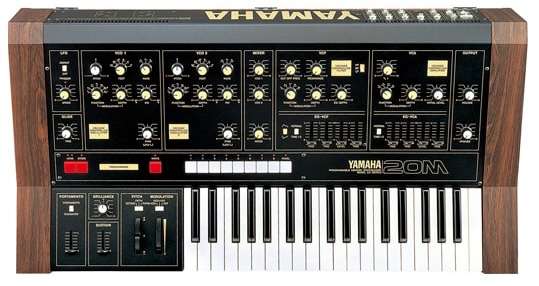

CS-20M

Model: CS-20M
Year: 1979
Price: ¥210,000 / $880
Tone Generator: Analog Synthesizer Type
Keyboards: 37 keys
Polyphony: mono
Effects: portamento/glissando, brilliance, sustain, pitch bend, modulation
Dimensions: 849 (W) x 455.5 (D) x 177 (H) mm
Weight: 16kg
Other: 2 VCO, 1 VCF, 1 VCA, 2 EG, 1 LFO, optional foot controller/switch

3.3 Generation 3 (1982–1983): The Consumer Mini-Synth Era

Just before FM synthesis took over the world, Yamaha released a last wave of small analog synths aimed at beginners and hobbyists.

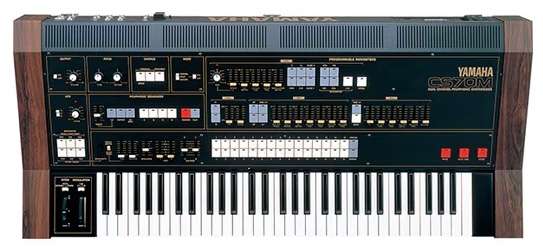

CS-70M (1981)

• Analog signal path with digital control and patch memory
• Early MIDI support
• Direct conceptual bridge between CS and DX range

Released in the early 1980s, the CS-70M marked the final major evolution of the CS line. While its sound generation remained analog, the instrument incorporated extensive digital control, patch memory, and early MIDI functionality. In many ways, the CS-70M represents Yamaha’s conceptual bridge between the expressive analog CS instruments and the fully digital DX synthesizers that would soon redefine the industry.

Model: CS-70M
Year: 1981
Price: ¥890,000 / $4,040
Tone Generator: Analog Synthesizer Type
Keyboards: 61 keys
Polyphony: 6
Voices: 30
Effects: Ensemble/Tremolo (slow/fast), portamento/glissando time set, sustain, brilliance, pitch bend, modulation, keyboard split
Dimensions: 1,120 (W) x 500 (D) x 180 (H) mm
Weight: 28.8kg
Other: 12 VCO, 12 VCF, 12 VCA, 12 EG (for VCA), 12 EG (for VCF), 1 LFO (programmable), 1 LFO (non-programmable), 39 parameter memory, magnetic data card system, 4-bank poly sequencer, voice library with 15 voice cards, optional foot controller, foot switch, storage card.

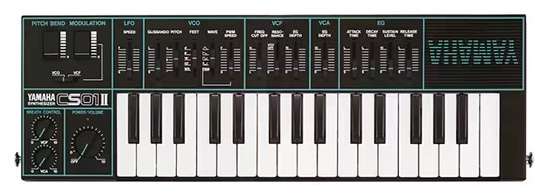

CS-01 / CS-01 II (1982/1983)

A cute little single-oscillator monosynth with:

• A built-in speaker
• Battery operation
• Breath-controller input
• Optional “keytar” style mod grip (now very rare)

Despite its size, the CS-01 sounds surprisingly good and has become a collector’s instrument. It also marks the very end of Yamaha’s analog era before the DX7 arrived and completely redefined their approach.

CS-01

Model: CS-01
Year: 1982
Price: ¥32,000 / $140
Tone Generator: Analog Synthesizer Type
Keyboards: 32 mini keys
Polyphony: mono
Dimensions: 489 (W) x 160 (D) x 36 (H) mm
Weight: 1.5kg

CS-01 II

Model: CS-01 II
Year: 1983
Price: ¥69,400 / $299
Tone Generator: Analog Synthesizer Type
Keyboards: 32 mini keys
Polyphony: mono
Dimensions: 489 (W) x 160 (D) x 36 (H) mm
Weight: 1.5kg

4. The Technology of the CS Series

Yamaha’s analog architecture has a distinct character — clean, stable, and slightly more “polite” than American or British designs. This is part of what makes the CS series interesting: the sound doesn’t try to copy Moog or ARP — it has its own identity.

Oscillators (VCO)

All CS synths use voltage-controlled oscillators. On the mono models, you’ll often see:

• Saw, square/pulse
• Sub-oscillator options
• Cross-mod or ring-mod (CS-15/CS-30)

Filters (VCF)

Many CS filters offer multiple modes:

• Low-pass
• High-pass
• Band-pass
• Sometimes switchable 12 dB / 24 dB slopes

Yamaha filters aren’t known for heavy saturation, but they’re smooth, musical, and easy to control.

Envelopes (EGs)

Most models use simple ADSR envelopes, but some include:

• Separate ADR modes
• Dual EGs per voice (especially on the more advanced mono models)

Modulation & Routing

This is where the CS mono series shines:

• Independent signal paths
• Filter routing options
• External inputs
• Semi-modular patching on the CS-30
• Breath control on the CS-01

Performance Controls

Introduced on the CS-50/60/80 and almost never replicated since:

• Polyphonic aftertouch
• Long ribbon strip
• Layering and detuning multiple voice sections
• Brightness and sustain sliders for live tweaking

This is why the CS-80 still feels so alive compared to modern synths.

5. Model Index

6. Musical and Cultural Impact

The Yamaha CS family shaped more music than many people realise. Of course, the CS-80 takes centre stage here — used by:

• Vangelis (notably Blade Runner)
• Toto
• Stevie Wonder
• Jean-Michel Jarre
• ABBA
• Michael McDonald

The combination of polyphonic aftertouch, organic filter movement, and rich detuned oscillators made it incredibly expressive for leads and pads.

Meanwhile, the smaller monosynths found their way into studios because they were reliable, good-sounding workhorses. The CS-15 and CS-30 in particular have become favourites among modern electronic artists for their quirky modulation options and solid tone.

The CS-01 also built up a following thanks to its portability and surprising musicality. It has appeared in everything from bedroom demos to indie albums.

7. Buying Guide (What’s Worth Getting Today?)

Yamaha CS synths are increasingly collectible, but some models make better practical purchases than others.

7.1 Best for…

Best overall “value” buys

• CS-5 – simple, warm, reliable, still relatively affordable
• CS-10 – deeper than the CS-5 and good for leads/bass
• CS-15 – sweet spot of flexibility and cost

For sound designers & experimenters

• CS-30 – huge potential, semi-modular, rare

For collectors / serious musicians

• CS-50 / CS-60 / CS-80: These are incredible instruments, but they require:
  • Regular servicing
  • Careful shipping
  • Adequate studio space
  • A specialist tech (rare nowadays)

Prices are high and rising.

Cult favourite

• CS-01 / CS-01 II
  Fun to play, portable, and charming. Great for small studios or as a unique lead/bass box.

7.2 Typical Used Prices (approximate)

These vary widely depending on condition and country, so consider these rough estimates:

• CS-5: £300–£500 / $350–$600
• CS-10: £400–£700 / $450–$800
• CS-15: £900–£1,300 / $1,100–$1,600
• CS-30: £1,800–£3,000+ / $2,000–$3,500+
• CS-50: £3,000–£5,000 / $3,500–$6,000
• CS-60: £5,000–£8,000 / $6,000–$10,000
• CS-80: £15,000–£40,000 / $18,000–$50,000+
• CS-01: £150–£300 / $150–$300

(These swing dramatically depending on condition and service history.)

7.3 Maintenance Notes

Most CS synthesizers are serviceable but not simple:

• Aging capacitors — recapping recommended
• Ribbon controllers may fail on CS-80
• Polyphonic aftertouch sensors are fragile
• Power supplies often need overhaul
• Some slider assemblies get sticky or intermittent
• The CS-30’s panel wiring is dense and time-consuming to access

If you’re buying a high-end model, factor in the cost of a specialist vintage synth technician.

7.4 Modern Alternatives

If you love the CS sound but don’t want vintage complexity, these modern options capture elements of it:

• Yamaha Reface CS – inspired by the CS philosophy, compact and modern
• Arturia CS-80 V / Synclavier V – convincing software recreations
• Deckard’s Dream – a boutique CS-80-inspired hardware polysynth
• Montage / MODX / CK series – Yamaha’s current lineup with powerful analog-style engines

8. FAQ / Common Questions

Does the CS-80 really deserve its reputation?

Yes — it’s not hype. It’s one of the most expressive analog synths ever built. But it’s also huge, delicate, and expensive to maintain.

Do the CS mono synths sound “Moog-like”?

Not really. They’re cleaner and more stable. They have their own flavour — less fat, more precise.

Is the CS-01 just a toy?

Surprisingly, no. It’s limited, but it records very well and has a distinct sound. Lots of serious producers use them.

Why did Yamaha stop making analog synths after the CS series?

Because FM synthesis arrived. The DX7’s success changed everything — Yamaha pivoted hard into digital.
